Optical Devices/Assembles

UV Power Monitor/Sensor
UV-300K

Ideal for continuous monitoring of output state of UV
UV sensor picks up and displays the ultraviolet rays that eye is unable to perceive. It is a device used for continuous monitoring of UV light intensity. Since SUMITA’s ultraviolet to visible wavelength conversion glass is used in UV-300K, its reliability is high, and it is an optimum sensor device for line inspection in production process. UV-300K enables detecting UV lamp’s deterioration and lighting failure.

SUMITA’s UV sensor/monitor UV-300K features:

Highly durable glasses are used for converting ultraviolet to visible light wavelength
Monitoring wavelength range: 170- 380 nm
Feedback UV lamp’s light intensity variance
Two operating modes provided: light intensity mode and integration mode
Analog voltage output: voltage (1 - 5 V) and current ( 4 – 30 mA)
Sensitivity setting by teaching
Answer-back output function
The optimum sensor head selectable for the wavelength employed
Simple operation

Applications

Semiconductor manufacturing devices
Disinfection and sterilization
UV curing
Lighting
Printing
Air cleaning
3D printing
Medical applications

Structure of UV-300K

Usage Examples

Lithography Systems
Disinfection and Sterilization

Specifications

Amplifier Unit

Model	UV-300K
Operation indicator light	Red LED（lit when output detection is ON）
Measurement range in power *	UV-T254、UV-T365、UV-L、UV-S [254nm] 0.1 – 30 mW/cm², 0.01 – 3 mW/cm² (high sensitivity head) [365nm] 3 – 900 mW/cm², 0.3 – 90 mW/cm² (high sensitivity head) UV-T405 [405nm] 300 - 9,000 mW/cm²
External teaching input External reset input	ON：0 - 1.5 V（0 V short circuit current ≦1 mA） OFF：Open or 4 - 30 V
Light intensity value display (relative value)	3-digit LED Light intensity mode：0 - 125% Integral mode：0 - 200%
Detection output Answer back output	NPN open collector（DC 30 V, 100 mA or less）
Analog output	Voltage/current switching with a switch 1 – 5 V（0 - 100%, 6V /125%） 4 – 20 mA (0 - 100%, 24 mA /125%)
Detection output Threshold value setting	Set % value by 1% with a switch Light intensity mode: 10 - 100% Integral mode: 10 - 200%
Sensitivity setting	Teaching sensitivity (set to 100%) Lowest sensitivity, highest sensitivity, zero-point setting
Cable	0.15 mm² shielded 7 core cabtyre cable 5.5 mm diam. ×2 m
Repeat accuracy	±2% F.S. or less
Temperature drift	0.1% F.S./℃ or less
Operating environment	-25 - +55℃ /35 - 85% RH（no condensation or freezing）
Power supply voltage	DC12 - 24V±10%（ripple P – P 10% or less）
Response time	300 ms or less
Current consumption	50 mA or less (excluding output current)
Weight	Approx. 140g

* 254 nm: Orc Manufacturing Co., Ltd. UV-MO2 (UV-25) 365 nm: Ushio Inc. UIT-101 (UVD-365PD) 405 nm: Orc Manufacturing Co., Ltd. UV-42

Sensor Heads

Model *	UV-T405	UV-T365	UV-T254	UV-L	UV-S
Features	Heat resistant			Long sleeve	Short sleeve
Measurement range in wavelength	200 - 330 nm, 360 - 420 nm, 455 - 476 nm, 517 - 600 nm	300 - 380 nm	170 - 380 nm
Temperature drift	-0.3%/℃ or less (at 254 nm) -0.1%/℃ or less (at 365 nm) -0.06%/℃ or less (at 405 nm)	−0.1％/℃ or less
Operating environment	−40 – ＋300℃ / 35 – 85％RH (no condensation or freezing)			−40 – ＋150℃ / 35 – 85％RH (no condensation or freezing)
Material	Ultraviolet-visible wavelength conversion glass, stainless steel
Accessories	M6 nuts, washers

* UV-T365 and UV-T254 have high sensitivity heads UV-T365W, UV-T254W.

Light Guides

Model	UV-H	UV-F
Features	Heat resistant	Free cut
Operating environment	−40 – ＋300℃ / 35 – 85％RH (no condensation or freezing)	−40 – ＋70℃ / 35 – 85％RH (no condensation or freezing)
Storage temperature	-40 - +70℃
Total length	2 m (including UV protection tube)	2 m (UV protection tube is mounted onto 1m from its end)
Material	Borosilicate glass, stainless steel	Acrylic, polyethylene, stainless steel

* Heat resistance temperature of the amplifier insertion part is＋70℃

Amplifier [UV-300K]

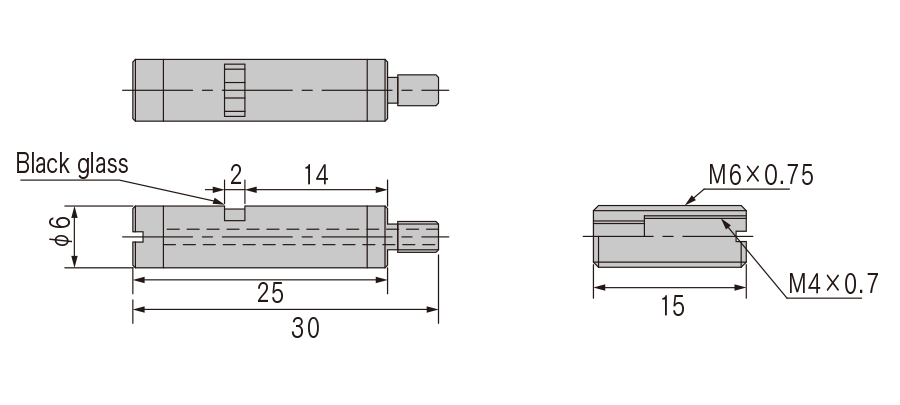

Heat Resistant Sensor Head [UV-T254, T405 (without Black Glass)/UV-T365 with Black Glass]
Sensor Head [UV-S (L=50±1) /UV-L (L=100±1)]
Light Guide [UV-H (Top) /UV-F (Bottom)]
