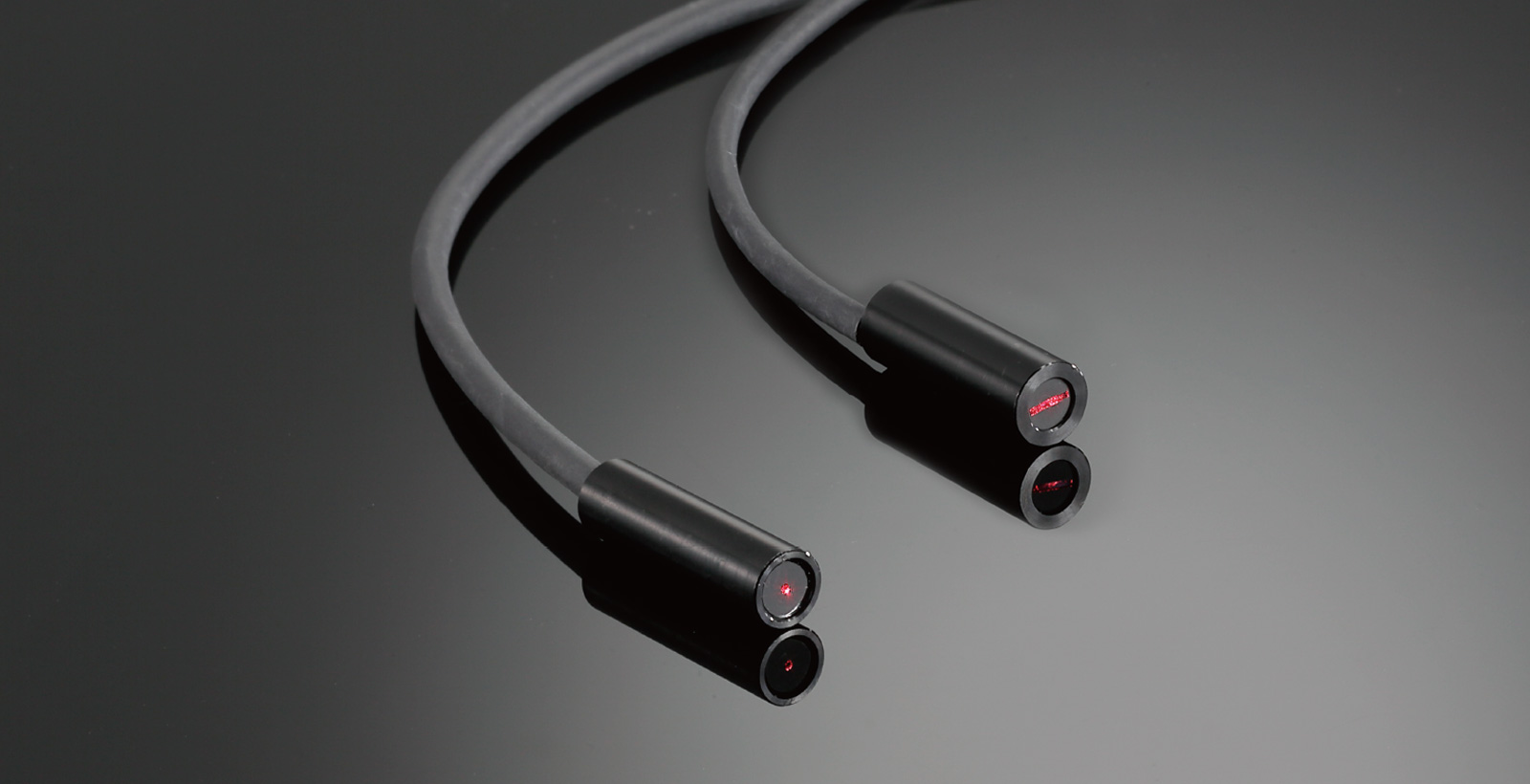

High quality laser pointer and laser line generators equipped with aspheric lenses which are manufactured with SUMITA’s optical design technology and precision molding technology.

  • Small diameter of 8 mm
  • Generating a uniform illuminance distribution

Laser Pointer

Compact laser pointer of 8 mm of diameter

  • High-accuracy aspherical lens provides a small-spot dot laser
  • Long-lifetime: 10,000 hours on average
  • Specifications

    Spot size φ0.8 mm
    (W.D.:0 - 1.5 m)

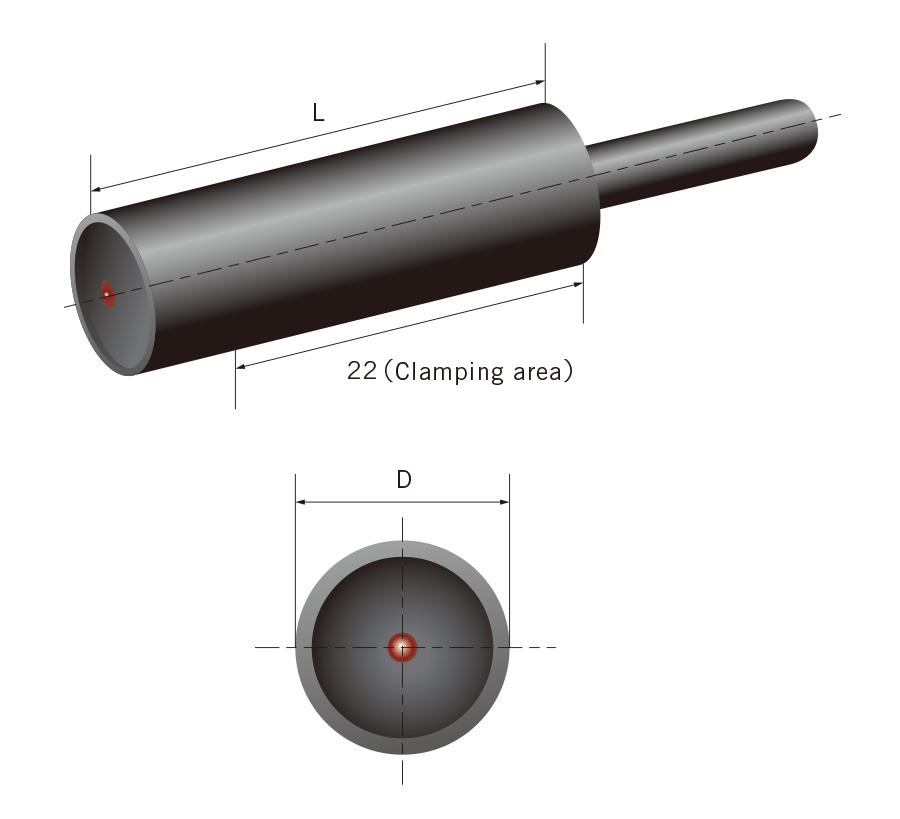

    Size (φDxL1) φ8 x 29 mm
    Clamping area 22 mm
    Standard W.D. 100 - 500 mm
    Wavelength 655 nm
    Output power* ≦1 mW Class II
    Average lifetime 10,000 hours
    Input voltage DC5V ± 5%
    Operating temperature -10 - + 50℃
    Operating humidity 20 - 85% RH
    Cord length 500 mm

    * Please contact us for change of output mode.

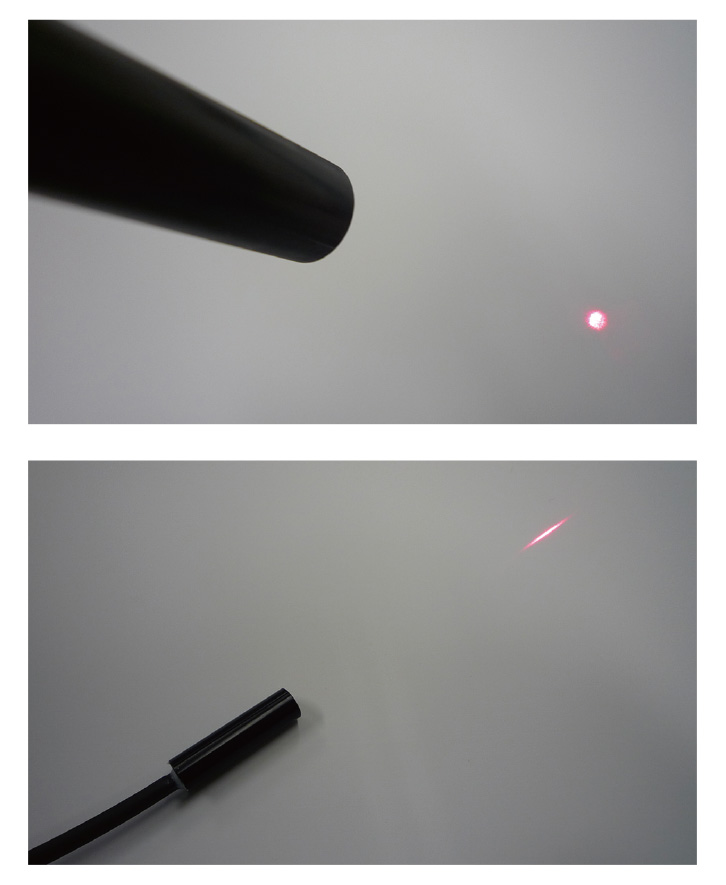

  • Beams of Radiation from Two Angles

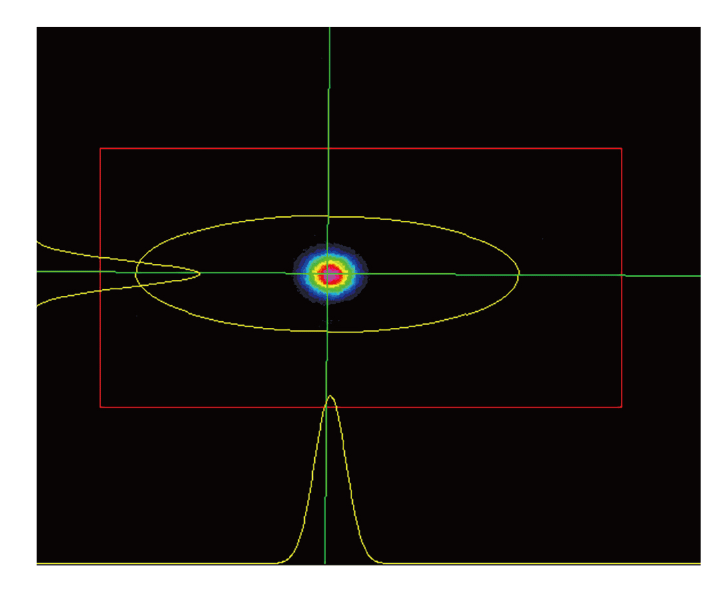

  • Beam Profile

Laser Line Generators

Generating a uniform illuminance distribution

  • SUMITA’s Line Generator controls Gaussian distribution of the light by optics, resulting uniform line with sharp ends
  • Long-lifetime: 10,000 hours on average

Specifications

Fan angle 30° 60° 90°

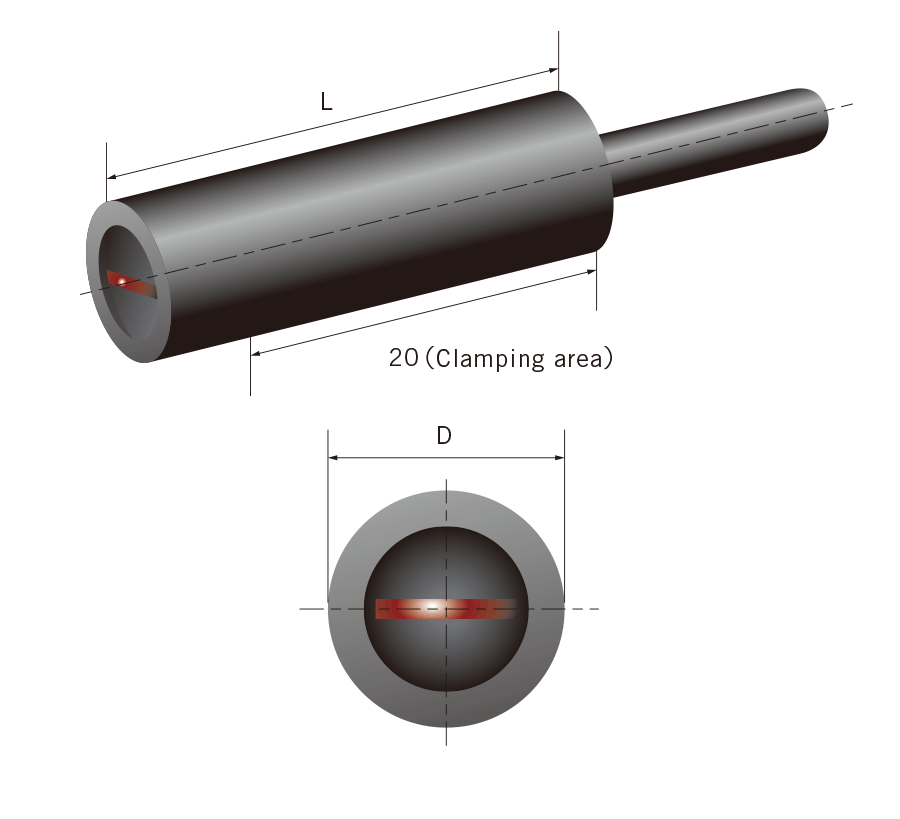

Housing size(φD x L) φ10 x 30 mm φ8 x 29 mm φ10 x 33 mm
Standard (W.D. 100 mm) Line length:50 mm
Line width:1.0 mm
Line length:125 mm
Line width:1.0 mm
Line length:180 mm
Line width:1.0 mm
Clamping area 20 mm
W.D. 100 – 500 mm
Wavelength 655 nm
Output power* ≦1 mW Class I
Average lifetime 10,000 hours
Operating voltage DC5V ± 5%
Operating temperature -10 - + 50°C
Operating humidity 20 - 85% RH
Cord length 500 mm

* Please contact us for change of output mode.

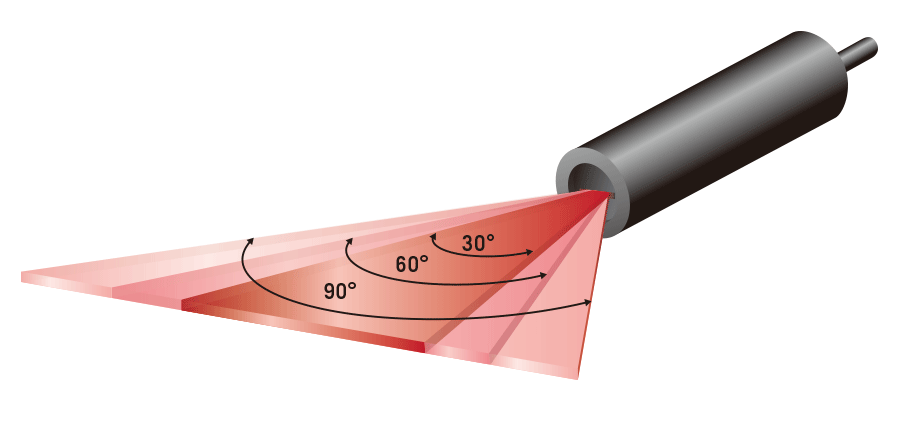

  • Beams of Radiation

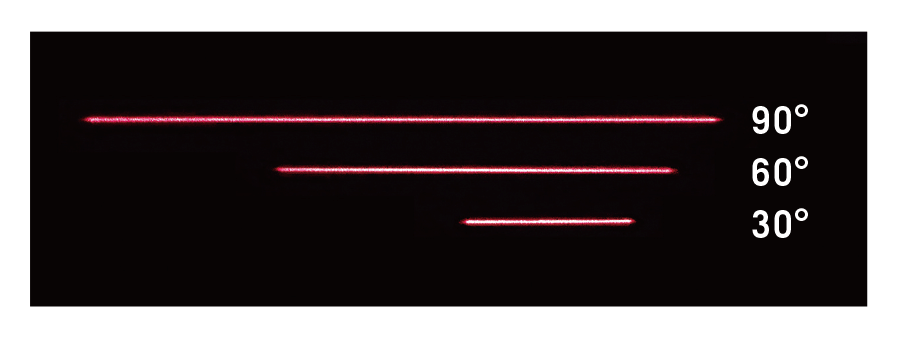

  • Beam Profile

Custom sizes and shapes are available upon request. Please feel free to contact us.
