Leached Image Guides/Bundles
Leached image guides consisting of flexible and coherent fiber optic bundles are used for transmitting optical images from one end to the other, which are suitable for endoscopes in narrow and elongated spaces.
Fiber optic components consisting of single fiber diameter 4 - 8 microns in bundles of thousands to 16 thousands, all precisely aligned together at both ends. This structure enables transmission of an image to the other end of the bundle. Our image bundles are used for medical and industrial use in the latest products.

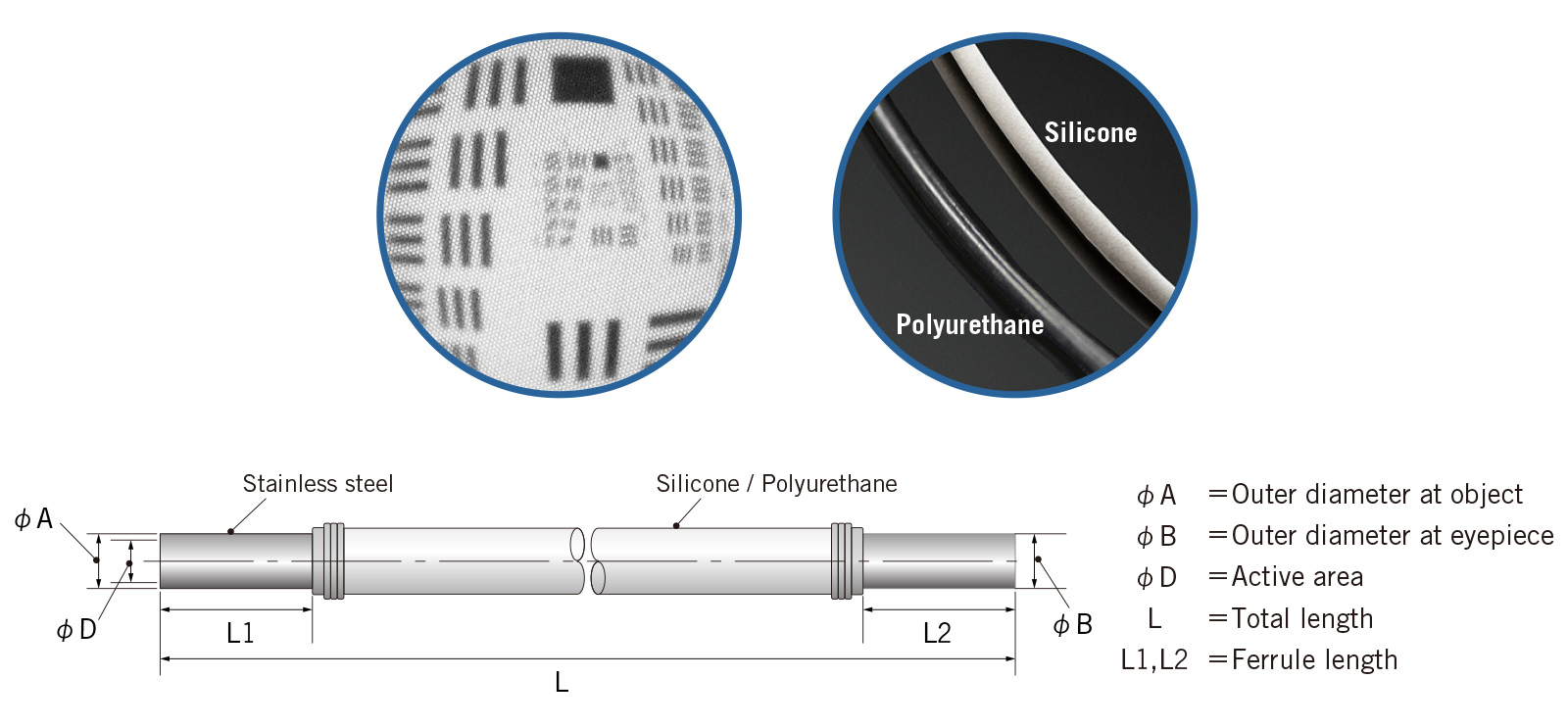

Standard Distal Ferrule
Specifications
| Model | Ferrule | Active area (φD) | Total length (L) | Single fiber diameter | Pixel count | Exterior material | |
|---|---|---|---|---|---|---|---|
| Object side | Eyepiece side | ||||||
| Outer diameter (φA) x length (L1) | Outer diameter (φB) x length (L2) | ||||||
| mm | μm | pix | |||||
| 056F1000-4.6 | φ0.56×3.6 | φ0.64×9.5 | φ0.38 | 1,000 | 4.6 | 8,100 | Polyurethane |
| 056F1000-6.9 | φ0.56×3.6 | φ0.64×9.5 | φ0.38 | 1,000 | 6.9 | 3,600 | |
| 064F1000-6.4 | φ0.64×3.8 | φ0.7×13.0 | φ0.4 | 1,000 | 6.4 | 5,200 | |
| 064F1050-6.4 | φ0.64×3.8 | φ0.7×13.0 | φ0.4 | 1,000 | 6.4 | 5,200 | |
| 076F0855-7.2 | φ0.76×3.5 | φ1.05×12.0 | φ0.5 | 855 | 7.2 | 5,200 | Silicone |
| 082F1000-7.0 | φ0.82×3.5 | φ0.82×3.5 | φ0.5 | 1,000 | 7.0 | 7.000 | |
| 116F0840-7.4 | φ1.16×3.5 | φ1.6×8.5 | φ0.89 | 840 | 7.4 | 16,000 | |
| 122F0760-7.4 | φ1.22×4.0 | φ1.22×11.5 | φ0.89 | 760 | 7.4 | 16,000 | |
| 126F0670-7.4 | φ1.26×3.5 | φ2.04×13.2 | φ0.89 | 670 | 7.4 | 16,000 | |
| 126F0760-7.4 | φ1.26×3.5 | φ2.04×13.2 | φ0.89 | 760 | 7.4 | 16,000 | |
| 126F0840-7.4 | φ1.26×3.5 | φ2.04×13.2 | φ0.89 | 840 | 7.4 | 16,000 | |
| 126F0895-7.4 | φ1.26×3.5 | φ2.04×13.2 | φ0.89 | 895 | 7.4 | 16,000 | |
| 126F0910-7.4 | φ1.26×3.5 | φ2.04×13.2 | φ0.89 | 910 | 7.4 | 16,000 | |
| 14F0545-8.1 | φ1.4×3.5 | φ1.4×11.5 | φ1.0 | 545 | 8.1 | 16,000 | |
- *1 Grades such as ESA and SA are distinguished due to the number of allowable defects. Kindly contact us for the details.
- *2 Customized leached fiber bundles can be available upon request.
