Fluoride Fibers for Visible Fiber Lasers

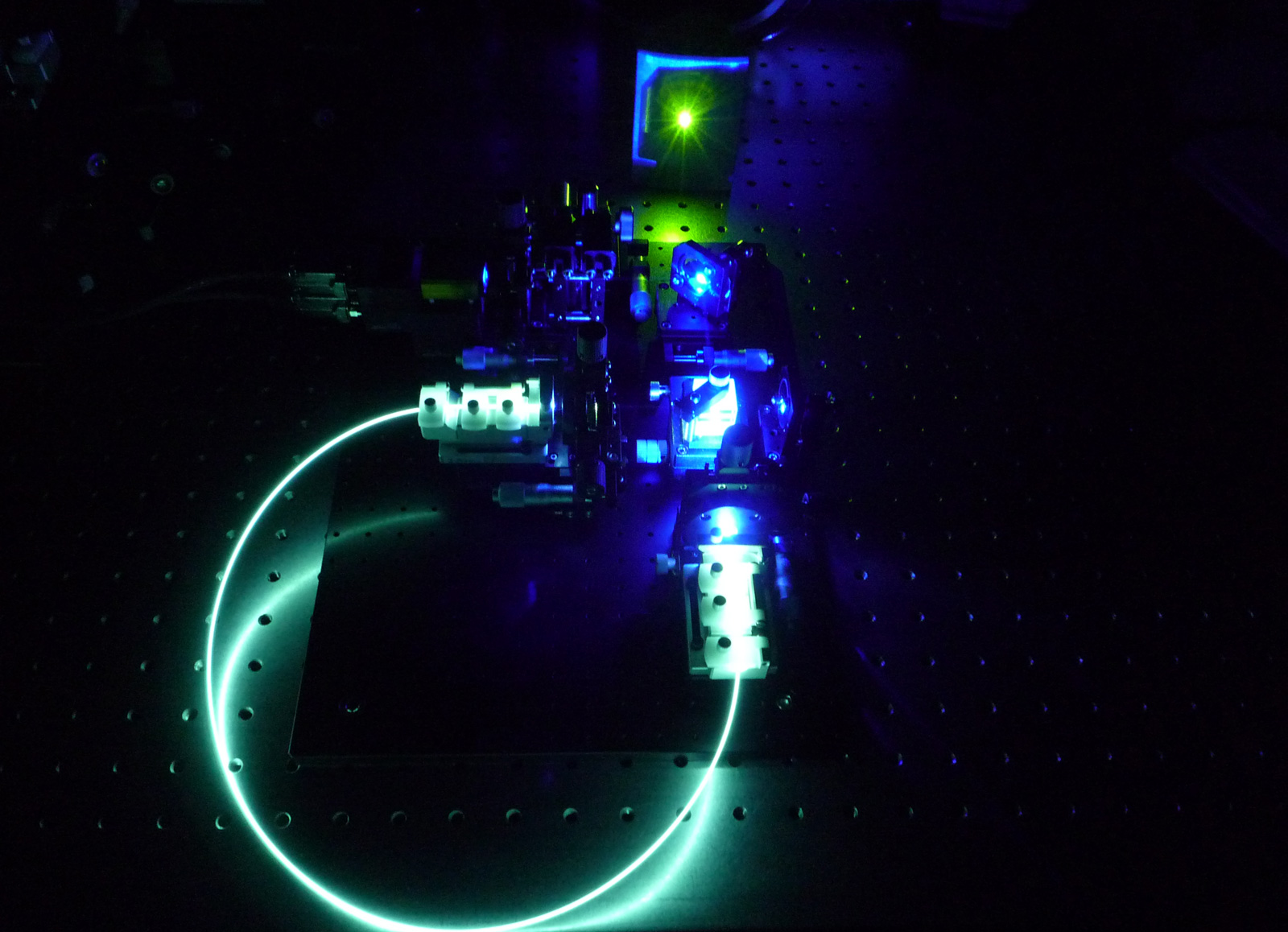

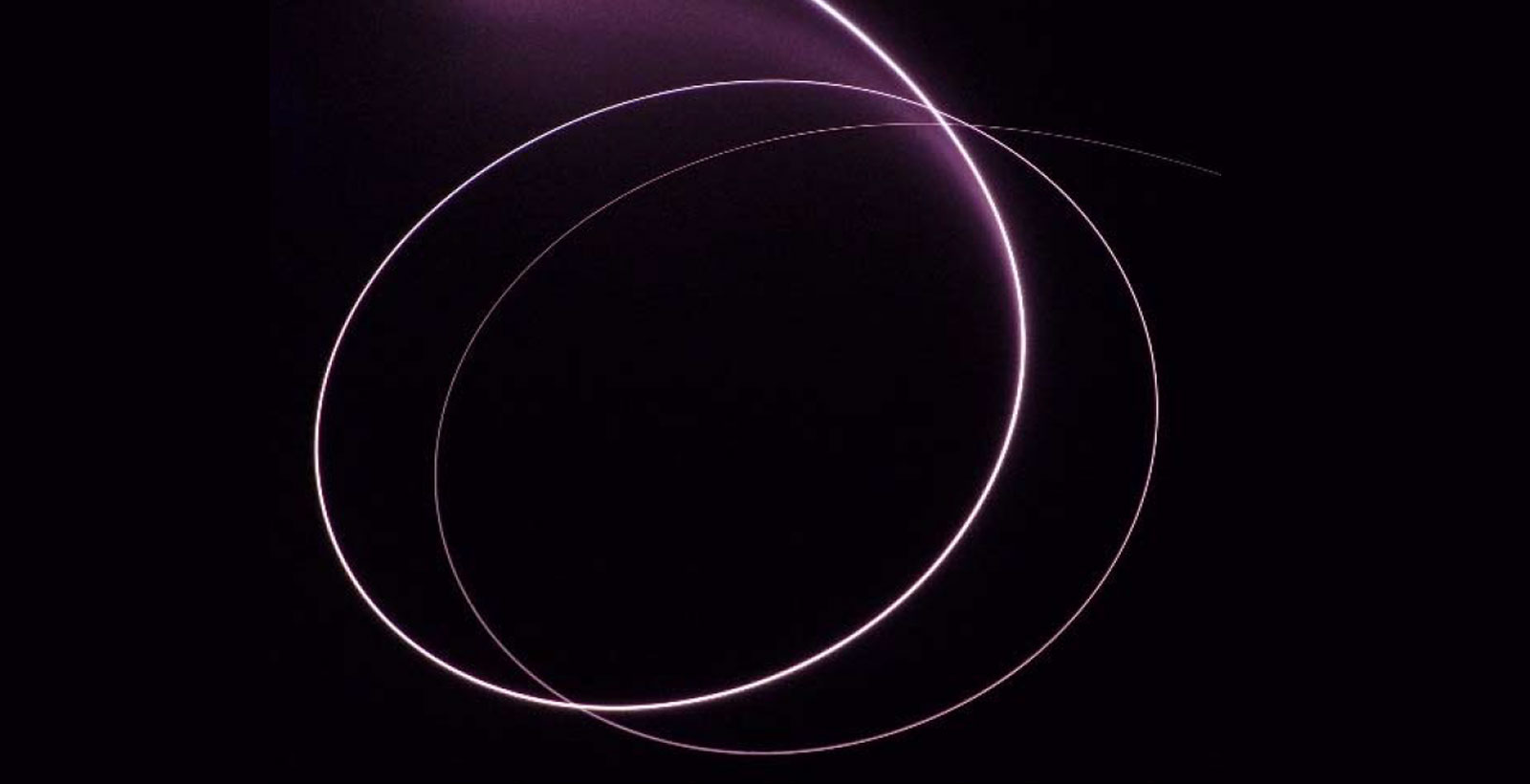

Our rare-earth doped fluoride glass fiber excited by blue LD emits multiple colors of fluorescence. This fiber is capable of performing laser oscillation by using optical cavity (resonator).

Features

Host medium: waterproof fluoride glass (AlF₃-based glass system)
Laser oscillation available in various wavelengths. Visible fiber lasers with red, orange, yellow*, green or blue-green emission.
* Effective yellow emission is rare in solid-state laser materials.
Pump source: blue LD
Double-clad fibers for multi-mode pumping and producing single-mode lasers. This structure allows multi-mode pumping in the large cladding area while the single-mode signal is generated in the small core region, thereby producing higher-output powers.
Simple configuration, highly efficient, and cost-effective laser fiber
Emission wavelength ranges of our rare-earth-doped fluoride fibers:

Doped ion Emission wavelengths

Dy³⁺ 570-580 µm

Pr³⁺ 480-495 µm, 520-525 µm, 534-541 µm, 600-620 µm, 620-640µm

* Other rare-earth ions can be doped upon request.
RoHS compliant

Doped ion	Emission wavelengths
Dy³⁺	570-580 µm
Pr³⁺	480-495 µm, 520-525 µm, 534-541 µm, 600-620 µm, 620-640µm

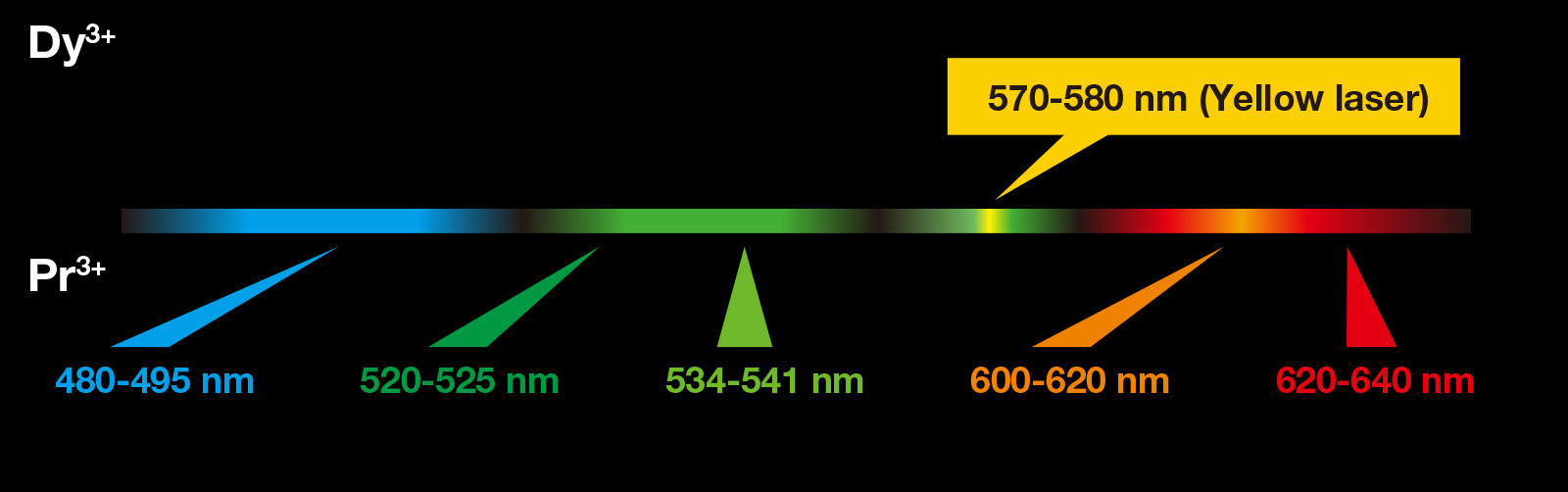

Wavelength Output

Schematic Diagram of our Cladding-Pumped Double-Clad Fiber

Application Examples

Display technology (e.g. visible fiber lasers with red, orange, yellow, green or blue-green emission)
Light sources for color holograms
Fiber lasers and amplifiers
Medical applications (e.g. photocoagulation surgery, examination, medicine. Yellow laser can be used in biomedicine, ophthalmology, and medical treatment for acne melisma and facial telangiectasia)
Ultra-short (compact) visible fiber laser system
High power tunable visible lasers and UV generation
Laser processing for industrial uses (e.g. marking, cutting, welding, paste-free soldering)
Biology
Metrology
Optical storage
High power continuous wave (CW) laser
