Multi-mode Optical Glass Fiber Light Cords/Cables
- 3 Gbps transmission capability
- No need to collimate light as our light cables have a large entrance area that can capture incident light
- Its multi-fiber structure enables transmit light even when some fibers in cables are broken
- Superior in handling flexibility and ease within a narrow space as each multi-mode fiber diameter of 30 μｍ is bundled
- As our light cables are made of glass, they perform reliably in extreme temperatures
Features
-
Conventional Products
-
SUMITA’s Light Cables

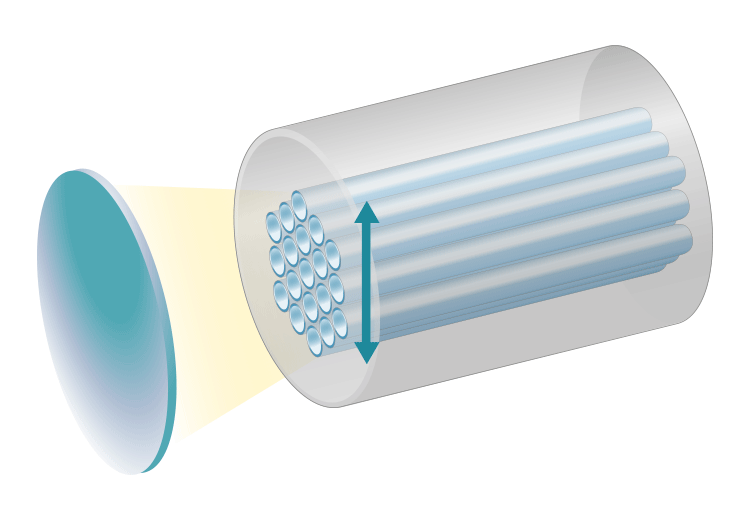

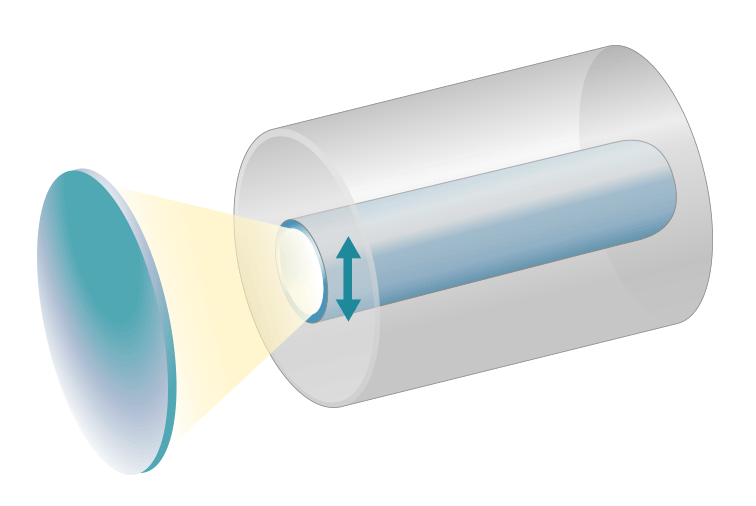

No need to collimate light as our light cables have a large entrance area that can capture incident light
-
Conventional Product
-
Our Product

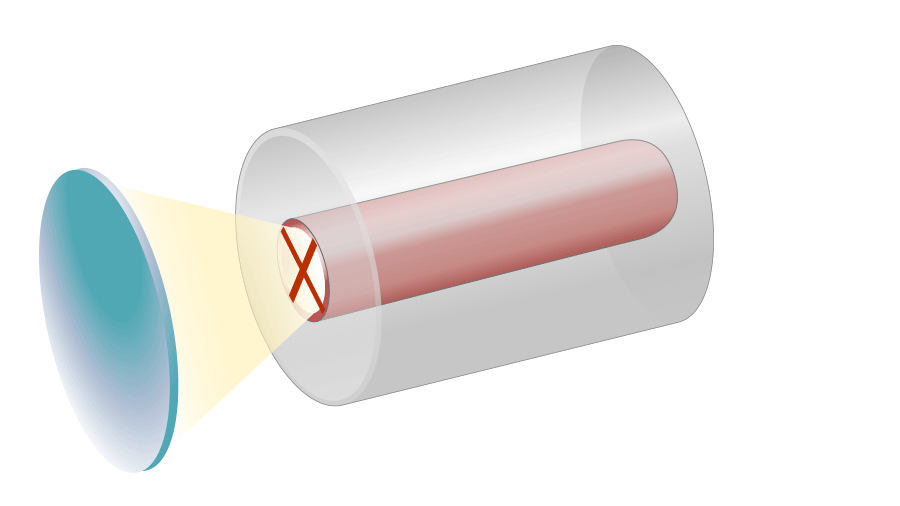

Its multi-fiber structure enables transmit light even when some fibers in cables are broken
Specifications
| Standard value | Tolerance | |
|---|---|---|
| Opening (2θ) / NA | 35° / 0.29 | Official value |
| Individual fiber diameter (μm) | 30 μm | ±1.5 |
| Individual core diameter (μm) | 24 μm | ±1.5 |
| Operating temperature ranges（Theoretical value） | -40℃ - 80℃ | - |
| Connector | FC/SC/SMA etc. | - |
| Transmission loss | 0.22 dB/m＠0.85 μｍ 0.36 dB/m@1.31 μm 0.99 dB/m＠1.55 μm |
Reference value |
| Bending loss/R10 | 0.2 dB (30 turns)/ｍ at 0.85 μｍ | Reference value |
